Thermic Fluid Pump for Thermic Fluid Heater – Quick & Hassle Free Process

Thermic Fluid Pump for Thermic Fluid Heater – Quick Hassle Free Process

Thermic Fluid Pump for Thermic Fluid Heater – Quick Hassle Free Process

A Thermic fluid heater is an industrial heating equipment, used only where heat transfers are possible instead of pressure. In industries like Food Processing, Natural Gas Processing Plant, Crude Oil Extraction and Processing, and Chemical industry, the temperature of thermal fluid is around 350℃. So, heating of the machine is a major problem for these types of organizations.

Since, these industries operate their manufacturing machinery at such a high temperature, one can only imagine how dangerous it is for the human body. This imposes a huge threat to the operations of an industry.

To overcome this problem, Sujal Engineering has developed a highly efficient Thermic Fluid Pump which is specially designed to handle high-temperature liquids and provide a proper solution for the high-temperature fluid/oil transfer applications in the market.

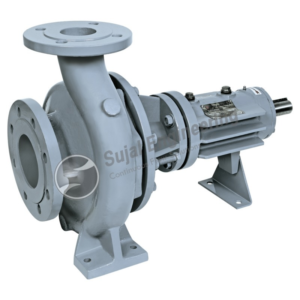

Thermic Fluid Pump for Thermic Fluid Heater

Thermic Fluid Pump for Thermic Fluid Heater



The unique design of Thermic Fluid Pumps allows the motor and bearing environment to be at a much lower temperature than the process fluid. This makes the process of transferring thermic fluid in different industries very quick and provides a hassle-free solution to your industry. It is a cost-effective solution for different manufacturing industries. This special feature is what sets us apart from others in the industry.



Application:

  • Thermic Fluid handling
  • Hot Oil Transfer
  • Plastic Industry
  • Synthetic Oil Transfer
  • Hot water Supply
  • Paper Industry
  • District Heating System
  • Plywood Industry
  • Mineral Oil Industry
  • Various Chemical Industries
  • Textile Industry
  • Food Processing Plants
  • Sugar Industries

Salient Features:

  • Closed impeller is hydraulically thrust compensated and dynamically balanced.
  • Maintenance is very much easier
  • Maximum interchangeability of components
  • No need to cool the pump externally
  • The shaft is designed according to the minimum heat transfer criteria.

Technical Specification:

  • Type: End-Suction, Horizontal, Single Stage – Thermic fluid pump.



Operating Range
Capacity up to 360 m3/hr
Head up to 100 Meter
Pressure up to 10 kg/cm2
Size 32 mm to 125 mm
Speed up to 3500 rpm
Temp up to 350 C
M.O.C. Grey Cast Iron, Cast Steel, Alloy Cast Steel, S.S 304, S.S 316 etc.

The features & specifications of the Thermic Fluid Pumps manufactured by Sujal Engineering proves the quality of our pumps. Before installation of the pump our highly qualified and expert team analyses the customer requirements and according to that provides a precise solution.

Sujal Engineering is one of the leading manufacturers for a vast category of industrial pumps. Our professionally experienced team and knowledgeable team is expert in designing various pumps that are very capable of handling aggressive & corrosive fluids. Also, we manufacture pumps as per client specifications and customization.

Contact us today for more details: www.sujalengineering.com
