Self Priming Mud Pumps

Self Priming Mud Pumps manufactured by Sujal Engineering is known by the SSPP Series in the market.

Our self-priming mud pump is best industrial mud pump used to circulate the mud. It is a non clog and self-priming type. Mostly used in marine, industrial, civil, construction, public utilities, polluted liquid including solid, sewage, oil well drilling, waste handling, etc applications.  We also manufacturer self-priming pumps with semi-open type impeller as per the requirement of the clients. It is the most suitable industrial pump for handling water and noncorrosive liquids.

Self-priming mud pump is designed in such a way that it allows pumping out a certain amount of mud, dirt and suspended solids.

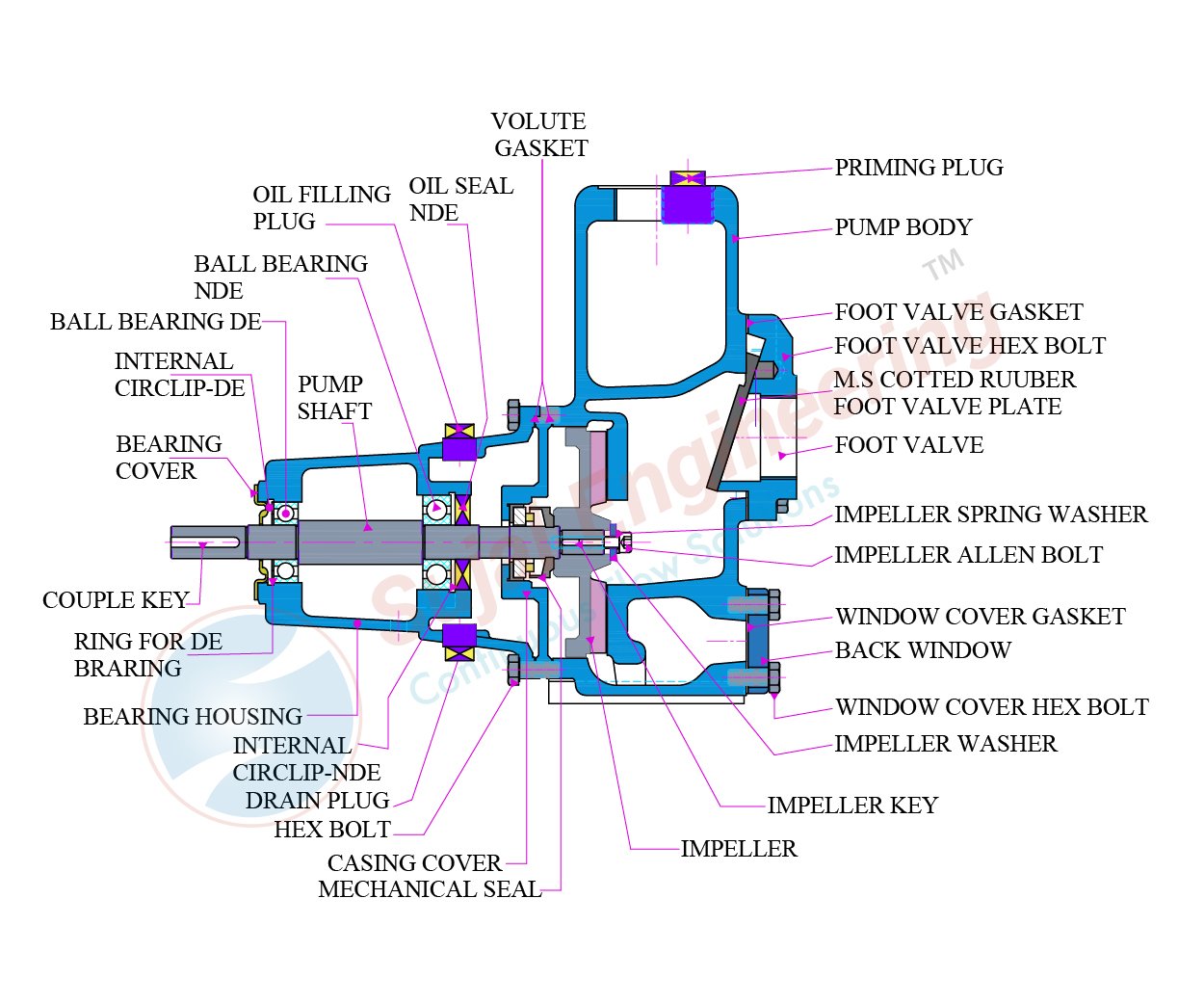

Cross Sectional Drawing:

Salient Features:

  • Robust construction, only two moving parts.
  • Better efficiency due to compact design.
  • Low maintenance.
  • Quick priming of dirty water.
  • Automatic air release during priming.
  • Motor body is made of anti-corrosive steel shaft
  • Dynamically balance rotation parts ensure avoid minimum vibrations.

We use heavy duty cast iron in casing. In stuffing box cast iron, deep gland box with graphite packing. Impeller, shaft sleeve in S.S. and bearing of top quality is also used.

Technical Specification:

Type Self Priming Mud Pump (with Mech. Seal fitted)
Capacity up to 75 m3/hr
Head up to 45 mtr
Pressure up to 5 kg/cm2
Size 32 mm to 75 mm
Solid Hand Size up to 25 mm
Speed up to 2900 rpm
Temperature up to 100° C
M.O.C. CI, CS, SS304 / 316, SS 304 L/316L, Alloy 20, Hast alloy B or C,CD4MCU, etc…

Self Priming Mud Pumps are used in following applications and industries:

  • Pumping of domestic sewage plants
  • Effluent treatment plants
  • Docks
  • Water from marine
  • Swimming pools
  • Storm water
  • Industrial wastewater
  • Ceramic industries
  • Polluted water and chemicals
  • Solvents
  • Construction sites and many other applications and industries.
    in many more industries and applications
