Rotary Gear Pumps Manufacturers

Sujal Engineering is a leading manufacturer of SGP Series – Known as Rotary Gear Pump.

We are engaged in best rotary gear pumps manufacturing from last many years. Our pump are multi purpose rotary gear pumps with double helical gears are self priming pump with 5 meter left suction.

It is specially used for the handling of minerals oils, paints, varnishes, syrups and inks. Our rotary gear pump entire range is manufactured under the guidance of experienced person using advanced technology and quality-tested components.

Cross Sectional Drawing:

Salient Features:

  • Compact design
  • Low leakage path
  • Robust construction
  • Less noise
  • High efficiency
  • Non-corrosive

Technical Specification:

Type Double Helical Rotary Gear Pump
Capacity up to 195 m3/hr
Head up to 100 Meter
Pressure up to 10 kg/cm2
Size 12 mm to 200 mm
Speed up to 1500 rpm
Temperature up to 200°C
M.O.C. CI, CS, SS304 / 316, SS 304 L/316L, Alloy 20, Hast alloy B or C,CD4MCU, etc

We assured you to deliver the best defect free products, our products pass under the certain quality check before the dispatch.

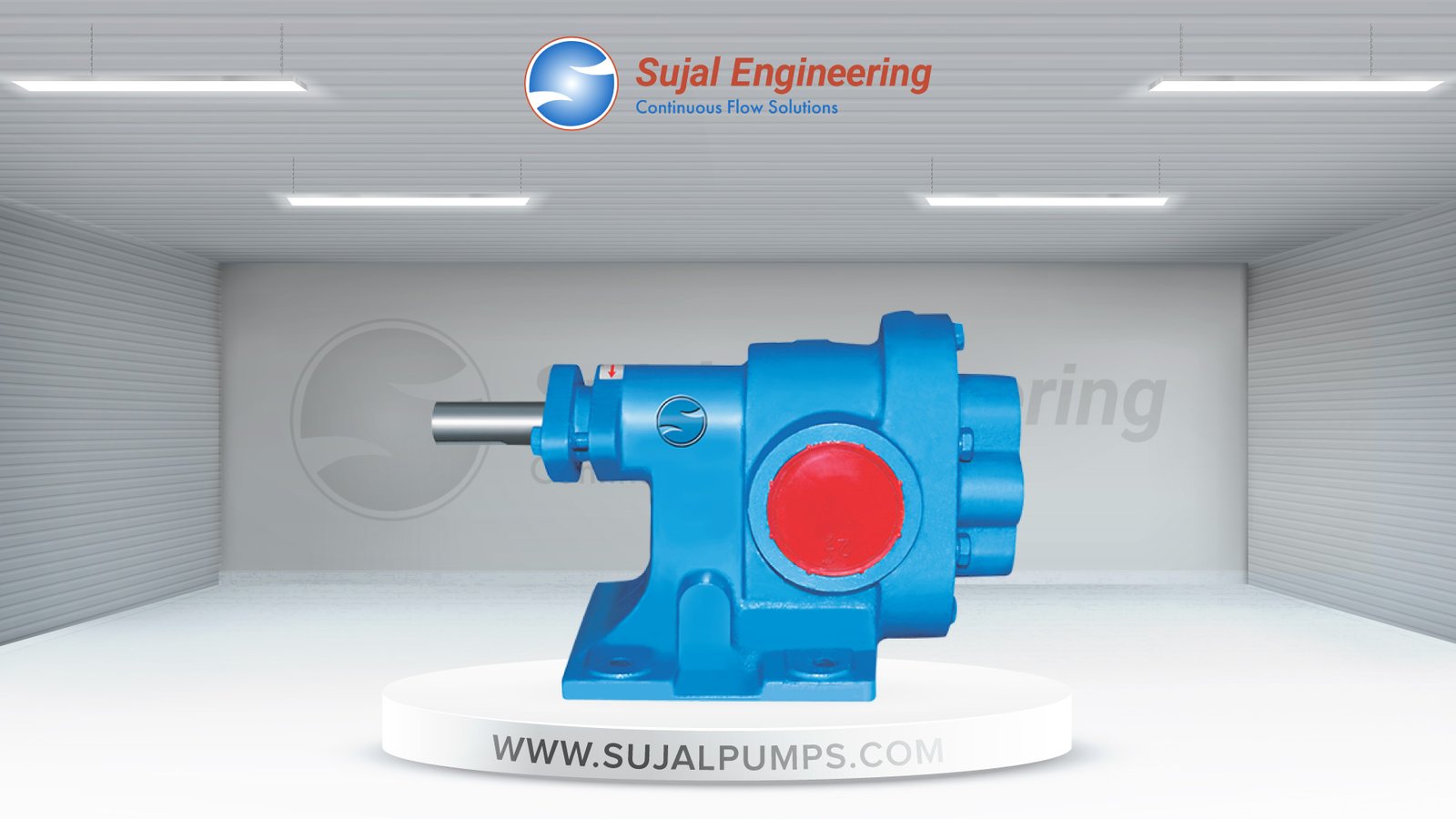

Rotary Gear Pump – SGP Series

Rotary Gear Pumps are used in following applications and industries:

  • Oil industries
  • Soft Drinks
  • Paper pulp
  • Chemical plants
  • Glue plants
  • Food industries
  • Soap solution handling
  • Highly Viscous Or Semi Viscous Liquids
  • Resins and pigment and in many other other applications and industries
