Vertical Pumps Manufacturers

Sujal Engineering is a leading manufacturer of SVSP Series – Known as Vertical Sump Pump or Long Shaft Pump.

We manufactured vertical pumps for the applications with low net positive suction head, cryogenic temperatures where vertical lift is required and in also in sump and cooling water services.

Our vertical pumps is specially designed for service in water, chemicals, sewage and slurries. Vertical pumps are cover a wide range of hydraulic condition to meet virtually every pumping service in the industry and optimum efficiency.

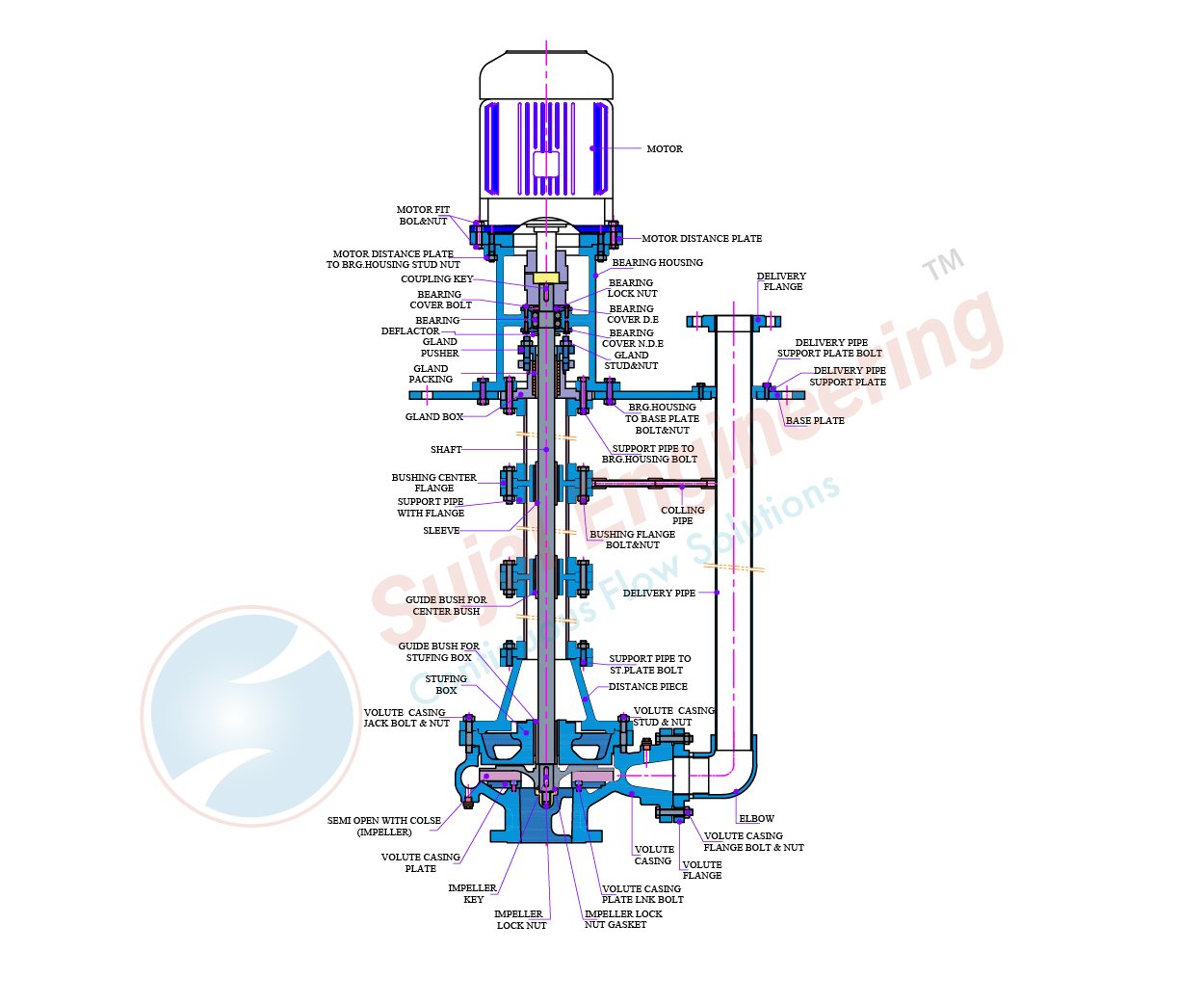

Cross Sectional Drawing:

Salient Features:

  • High head per stage
  • High capacity
  • Low maintenance
  • Robust Design
  • Highly reliable
  • Long Life

Download Our
2023-24 Vertical Pumps Catalog



Download Now

Technical Specification:

Type VERTICAL LONG SHAFT PUMP
Capacity up to 325 m3/hr
Head up to 60 mtr
Pressure up to 6kg/cm2
Size 25mm to 125 mm
Speed up to 2900 rpm
Temperature up to 80°C
M.O.C. CI, CS, SS304 / 316, SS 304 L/316L, Alloy 20, Hast alloy B, CD4MCU, etc…

Vertical Pumps are used in following applications and industries:

  • Chemical plants
  • Water treatment plant
  • Utility circulating water
  • Seawater and raw water intake
  • Sewage and Slurries in many more industries and applications
