SVSP Series Vertical Long Shaft Sump Pump
Unmatched Power for Industrial Sump Duties.
Sujal Engineering is a leading manufacturer and exporter of Vertical Centrifugal Long Shaft Sump Pumps engineered for efficient handling of corrosive, abrasive, and contaminated liquids directly from underground sumps or tanks. These pumps feature a rigid multi-bearing design, precision-machined shaft, heavy-duty column pipe assembly, and dynamically balanced impellers to ensure stable and vibration-free operation.
With customizable shaft lengths, high efficiency, and robust hydraulics, Sujal Engineering’s long shaft pumps ensure uninterrupted operation in critical applications. As a leading manufacturer and exporter, we provide engineered solutions that comply with international pumping standards and deliver reliable performance across industries.
Technical Specification
| Specification | Details |
|---|---|
| Type | Vertical Extended shaft Sump Pump |
| Capacity | up to 1100 m3/h |
| Head | up to 140 Meter |
| Pressure | up to 14 kg/cm2 |
| Size | 25 mm to 300 mm |
| Speed | up to 3500 rpm |
| Temperature | up to 300 C |
| Material of Construction (M.O.C.) | CI, CS, SS304 / 316, SS 304 L/316L, Alloy 20, Hast alloy B, CD4MCU, etc |
| Connection Type | Flange |

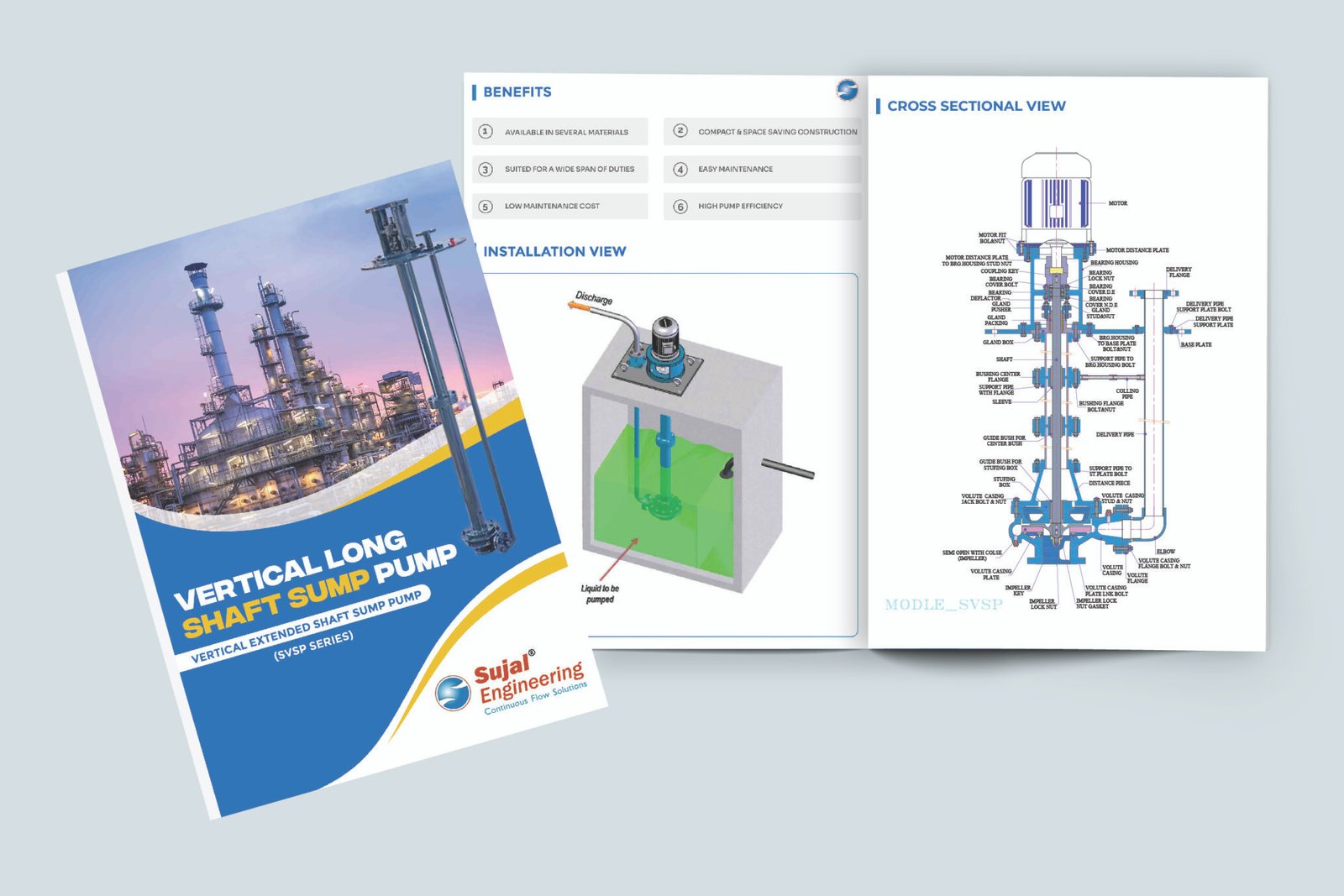

Download Our Vertical Long Shaft Sump Pump Catalogue
Get the complete specifications, features, and performance details of our Vertical Long Shaft Sump Pump in this downloadable catalog.
Designed for durability and efficiency.

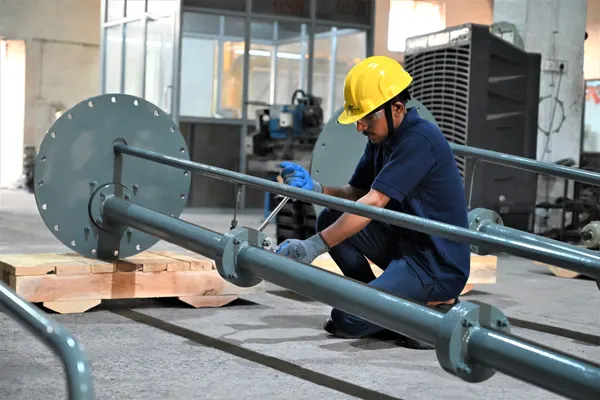

Smart Design Features
- Direct vertical sump installation for deep pits without priming.
- Precision-machined long shaft supported with multiple bushes.
- Open/semi-open impeller options for solids and slurry handling.
- Wide material availability including CI, SS, Duplex, and special alloys.
- Heavy-duty thrust bearing assembly for reliable axial load support.
- Modular column pipe construction for customizable immersion depth.
- Low maintenance design with easy access to shaft, bearings, and impeller.
- Optional strainers, wear plates, and shaft sleeves for extended service life.
- Available with explosion-proof motors for hazardous environments.
Powering Efficiency Below the Surface.
Partner with us for reliable pumping solutions.

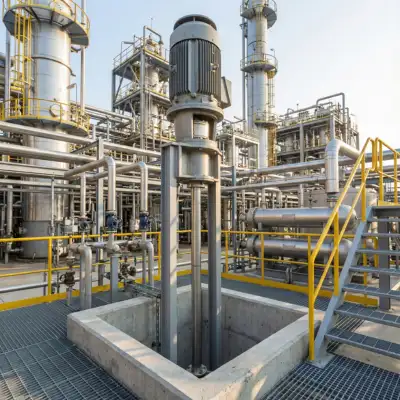

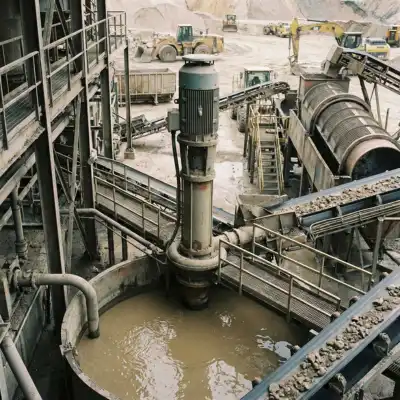

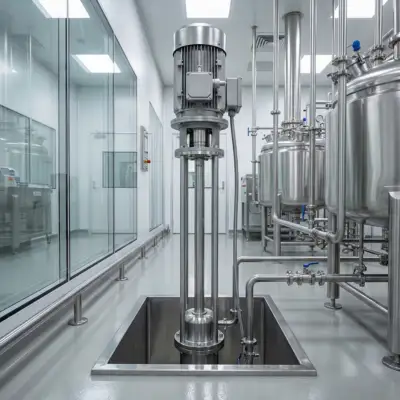

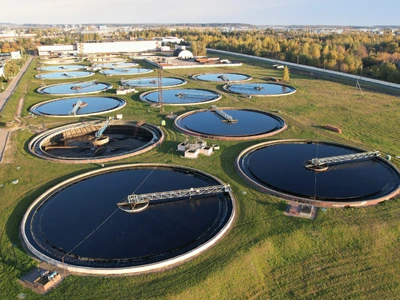

Applications of Vertical Long Shaft Sump Pumps
Trusted Across Multiple Applications

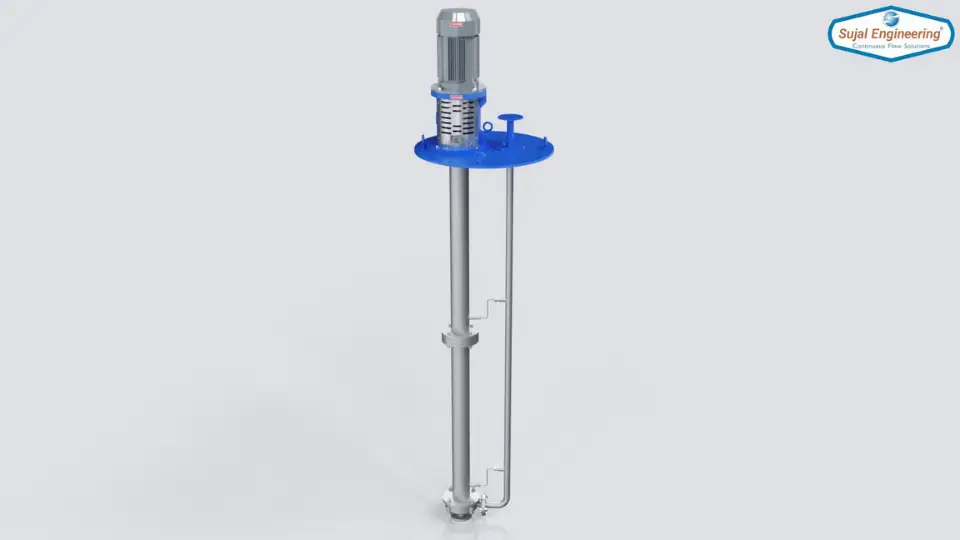

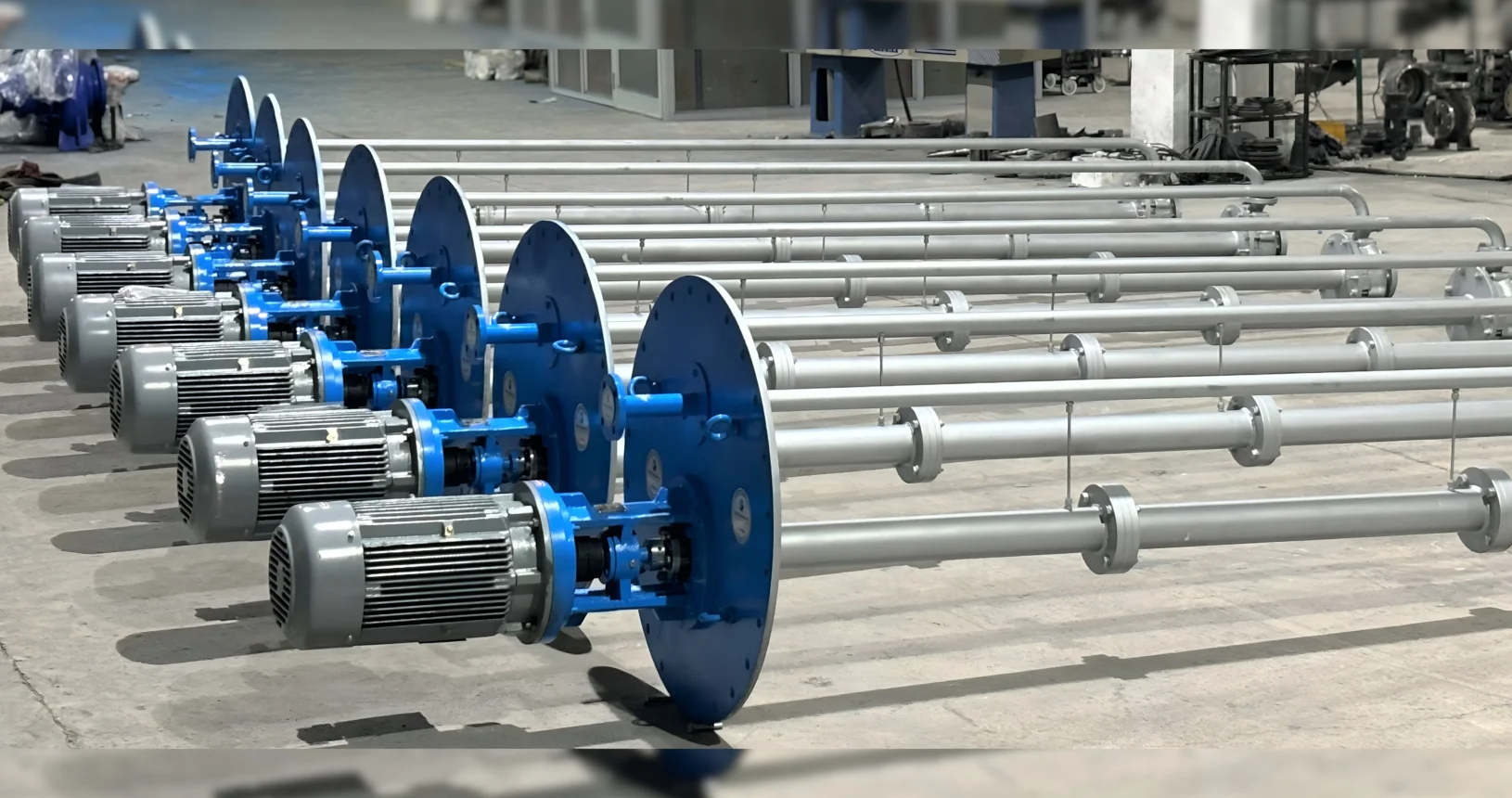

Vertical Long Shaft Sump Pump – SVSP Series
Get Your Custom
Pump Solution Today
Talk to our experts to specify the right vertical long shaft sump pump for your industrial needs —
precise performance, durable build, and prompt delivery.

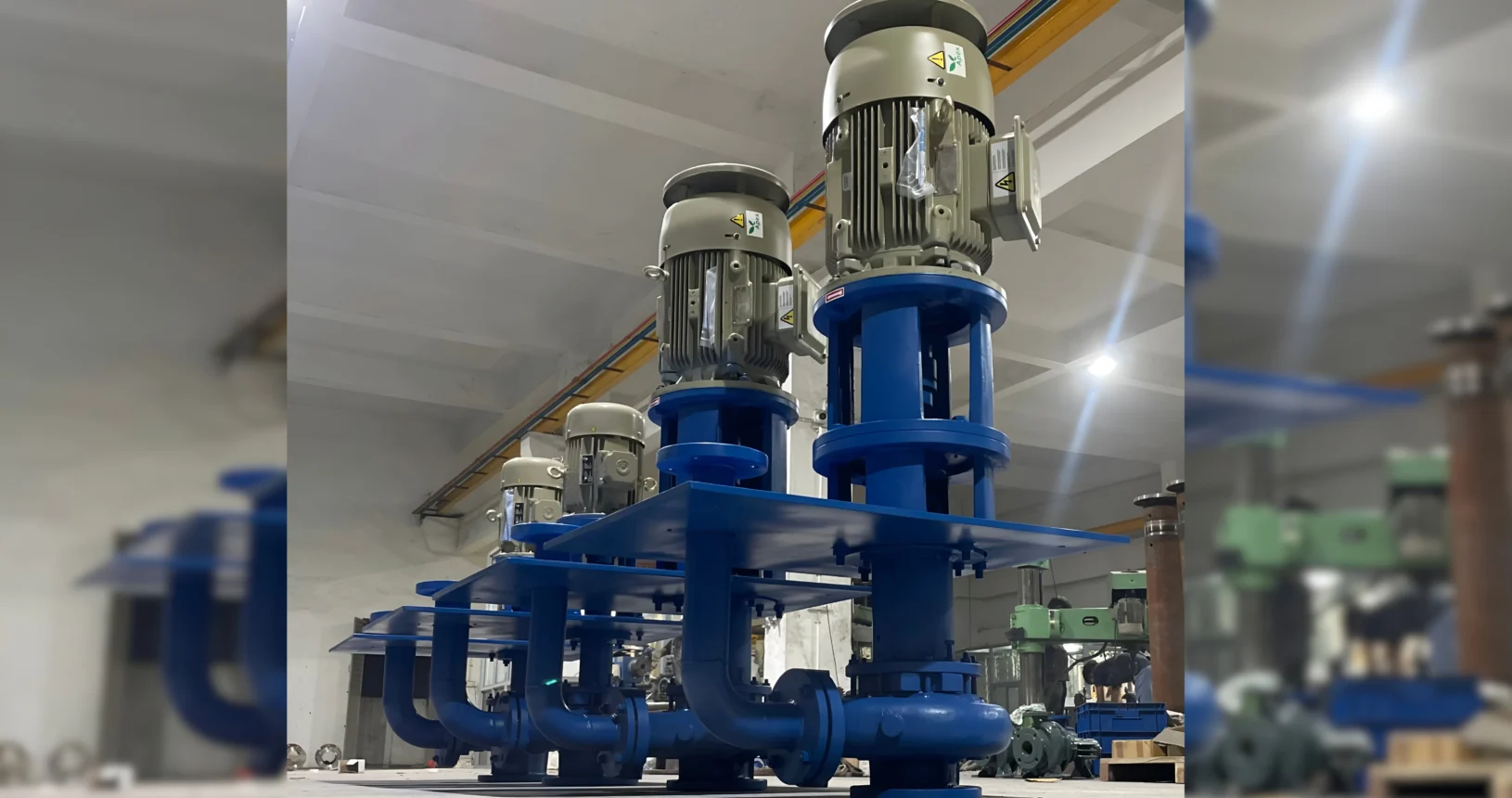

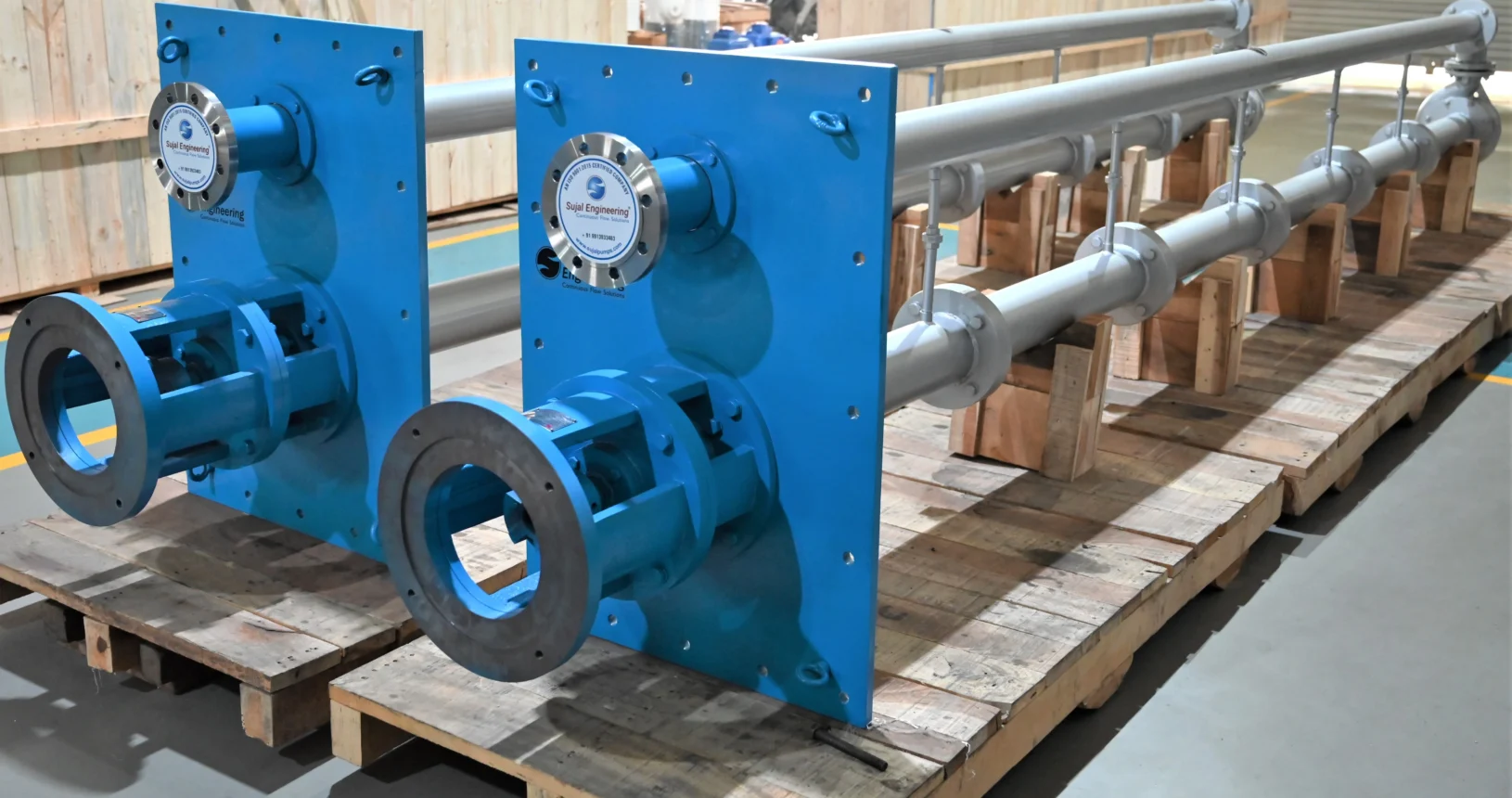

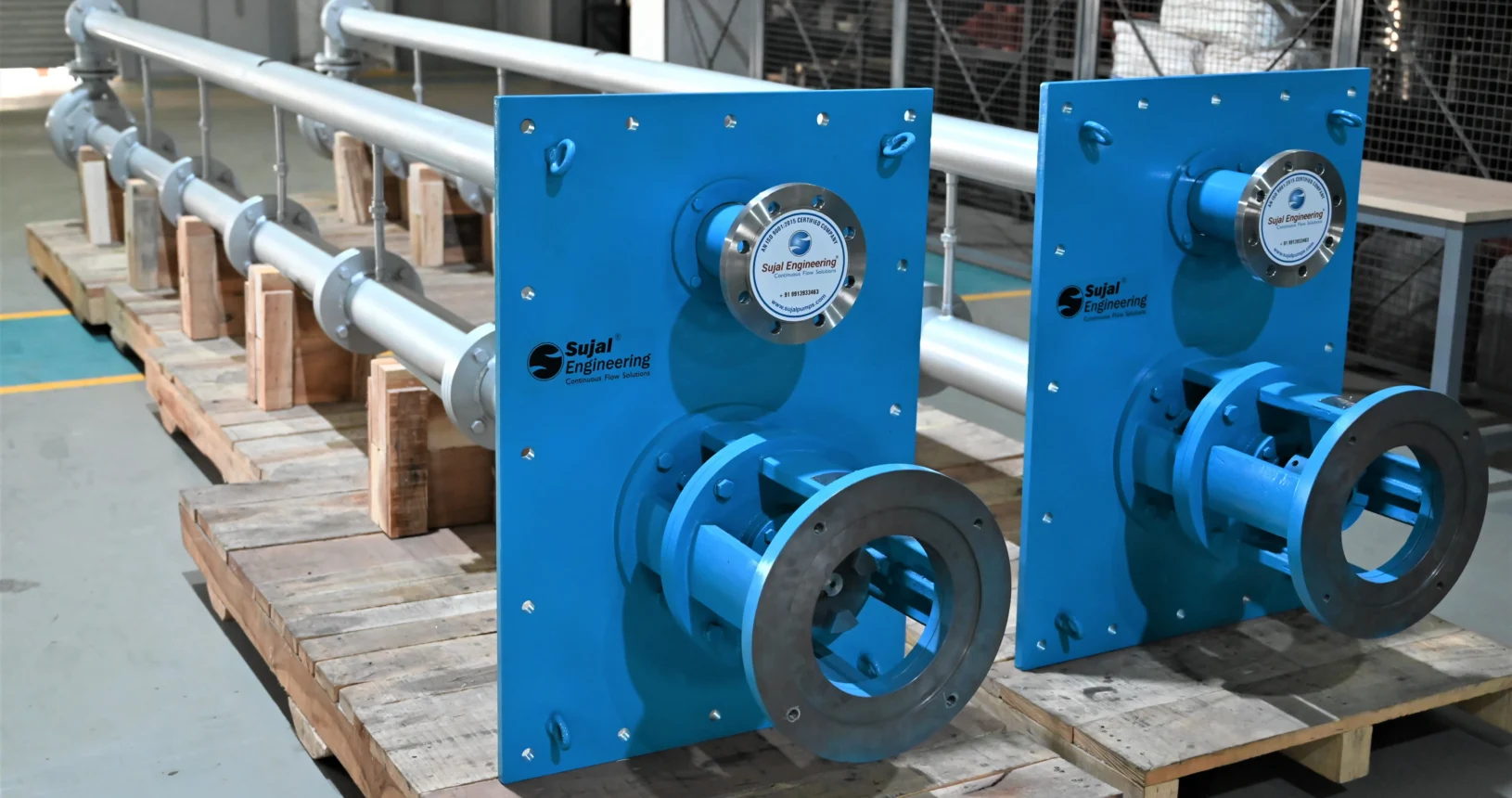

See the excellence we deliver.
