Overview of SMPP Series Polypropylene Monoblock Pumps:
Our SMPP series Monoblock type PP pumps which are small, economical and easy to use and maintain. As the name suggests, monoblock pumps have a single unit wherein the motor and the pump are assembled jointly. Monoblock pumps have the advantage of avoiding transmission losses and hence can operate at 10% extra efficiency. The SMPP Series pumps are made of a special synthetic resin made through the polymerization of propylene. This gives these pumps extra toughness, making them lightweight and resistant to fire or harsh weather.
Technical Specification of PP Monoblock Pumps:
| Capacity | Up to 50 m³/hr |
| Head | Up to 45 Mtr. |
| Discharge Size | 25 mm to 75 mm |
| Temperature | 80°C |
| Speed | Up to 3500 rpm |
| Pressure | Up to 4.5 kg/cm³ |
| M.O.C. | PP, PVDF |

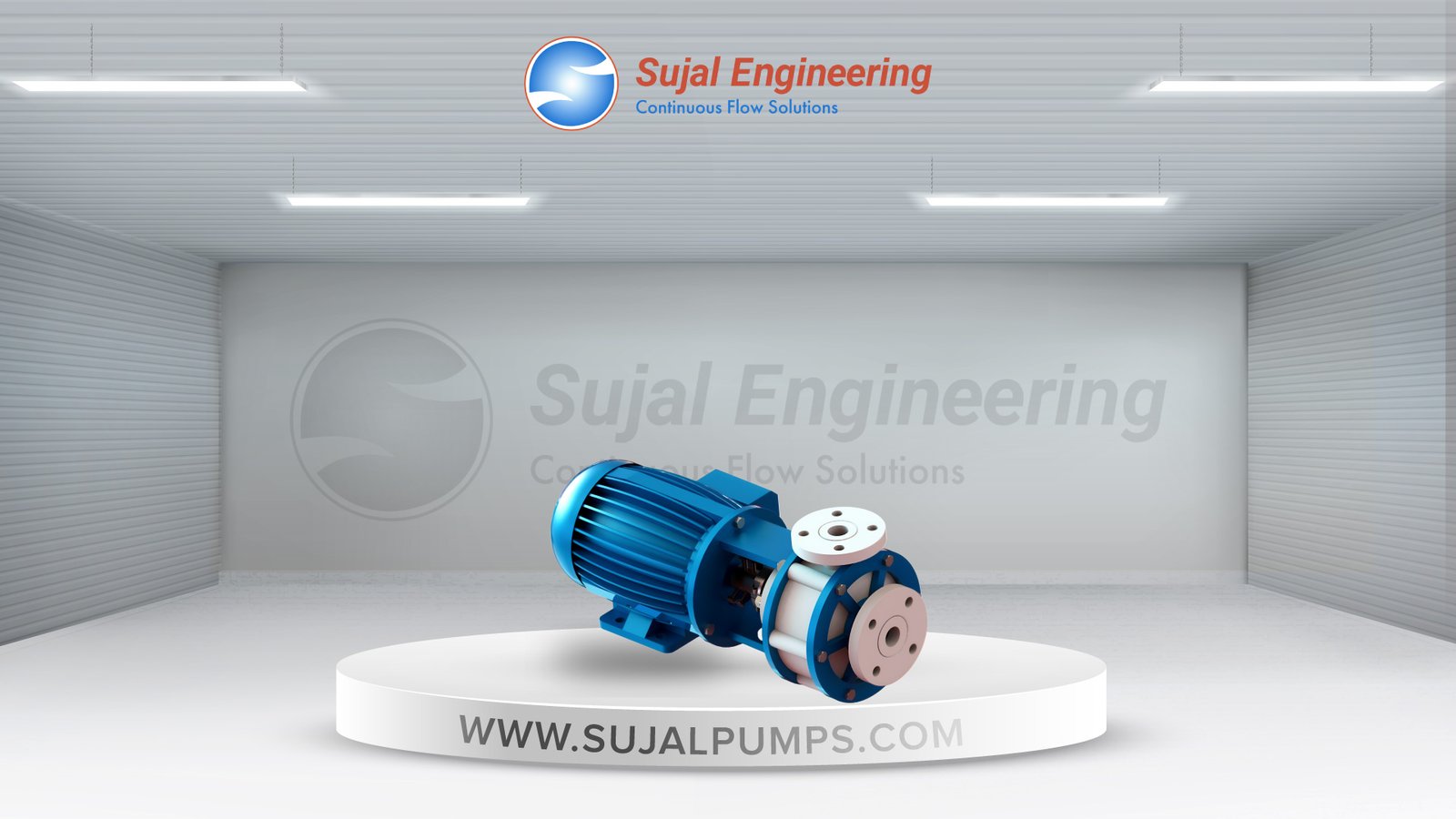

Polypropylene Monoblock Pump – SMPP series
Salient Features of PP Monoblock Pumps:
- Single Shaft Arrangement Increases Efficiency
- Generally Small In Size And Lightweight
- Pumps Are Self-Supporting And Simple To Install
- Can Provide High Head And Capacity
- Highly Cost-Effective And Good ROI
- Resistant To Heat, Pressure, Chemicals And Wear & Tear

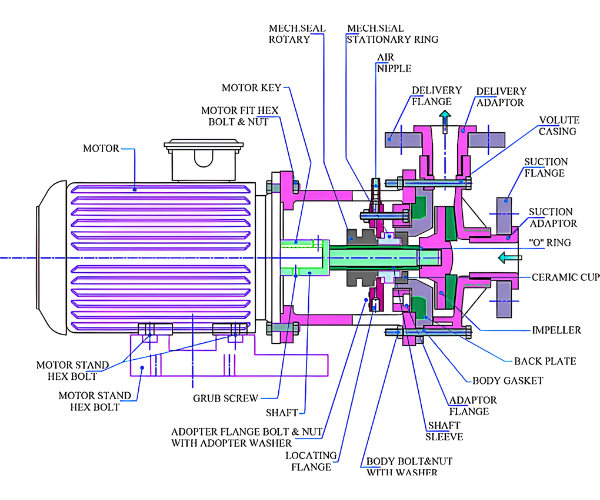

Part List Drawing of PP Monoblock Pump
Applications Across Various Industries:
- Filter Press for dyes and chemicals
- Drugs & Pharmaceutical Industries
- Descaling of Tubes
- Scrubbing of corrosive gases
- Excellent for vacuum ejectors
- Paper & Pulp industries
- Pickling in steel rolling mills
- Caustic soda plants
- Electro Plating
- Transferring of concentrated HCL from road tankers
- Fertilizer Plants Thermal and atomic power plants

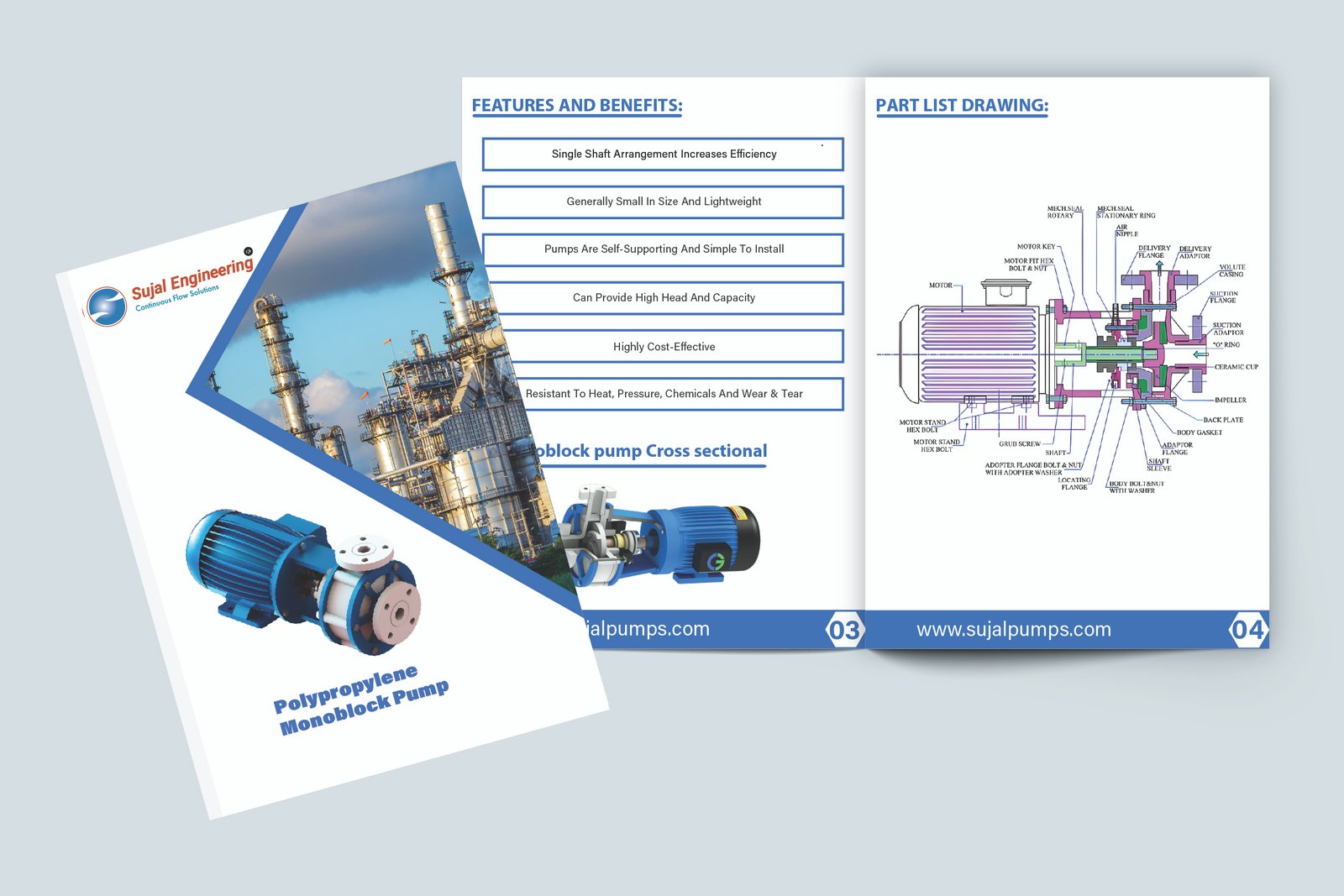

Download Our Polypropylene Monoblock Pump Catalogue
